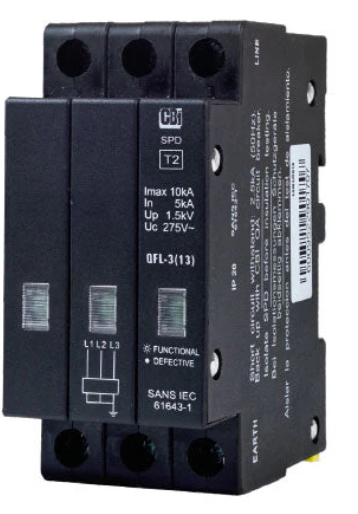

CBI QFL-3(13) Mini Rail Surge Protector with Indication 3P 275V 10kA SPD T2
R 884.05 ZAR
Skip to product information
CBI QFL-3(13) Mini Rail Surge Protector with Indication 3P 275V 10kA SPD T2
R 884.05 ZAR
The CBI QFL-3(13) is a Type 2 (T2) three-pole (3P) surge protective device (SPD) designed for DIN rail mounting. Featuring built-in functional/defective indication lights on each pole, it provides robust protection against transient overvoltages across all three phases (L1, L2, L3). Complies with SANS IEC 61643-1 and is ideal for three-phase residential and commercial electrical panel installations.
- Type: Surge Protective Device (SPD) – Type 2 (T2)
- Poles: 3P (L1, L2, L3)
- Maximum Surge Current (Imax): 10kA
- Nominal Discharge Current (In): 5kA
- Protection Level (Up): 1.5kV
- Operating Voltage (Uc): 275V~
- Mounting: Mini DIN Rail
- Indication: Functional / Defective LED per pole
- Standard: SANS IEC 61643-1
- Brand: CBI
